ODM OEM 300kg Vacuum Lifting Device Pneumatic Balance Crane Jib Crane Vacuum Suction Crane Heavy Load Handling Equipment

Basic Info

Muscle Size	>31kg
Certification	ISO
Control Mode	Continuous Path Control
Drive Mode	Pneumatic
Condition	New
Application	Load
Transport Package	Wood Box
Origin	China
HS Code	8428909090

Product Description

We are a manipulator manufacture in local China, and we focus on the designing, producing, after-sales of different kinds of Manipulator machines for more than 10 years. We can designs machines base on your need, please contact us if you have any question, we will give you our best service.

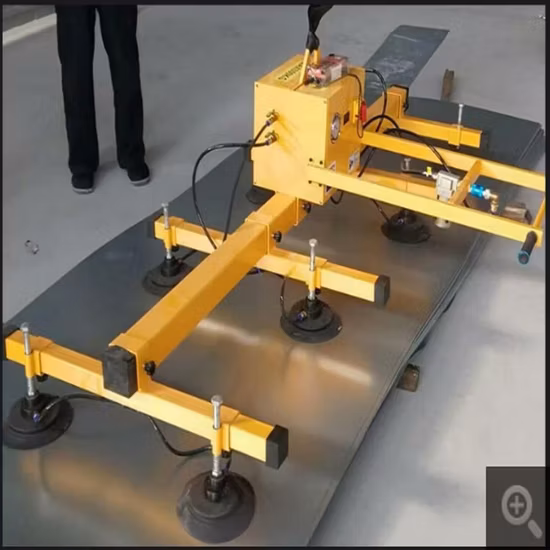

This machine are designed for big board handling, mostly need the board surface flat and smooth. We can design the suction cup quantity and control method. All design will be base on your need.

Models for your reference.

Load	Moldel No.	Suction Cup	suction power(kg)	vacuum pump	power	supply		control method	Weight
(kg)		Diameter (mm)	(of single cup)	V4.4	voltage	frequency	phases	manual	(kg)
250	BLA250-4-230	230	125	V4.4	220/380	50/60Hz	1/3	manual	80
250	BLA250-6-150	150	45	V4.4	220/380	50/60Hz	1/3	manual	85
500	BLA500-6-230	230	125	V4.4	220/380	50/60Hz	1/3	manual	95
750	BLA750-8-450	230	125	V4.8	220/380	50/60Hz	1/3	manual	110
1000	BLA1000-6-300	300	200	V4.16	220/380	50/60Hz	3	manual/electric	140

More information about Suction Crane:

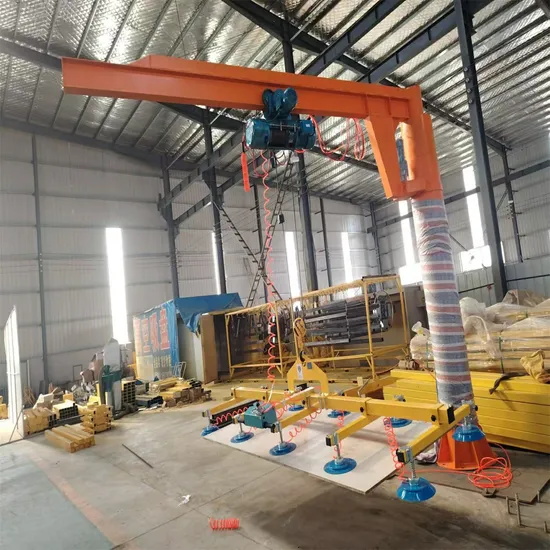

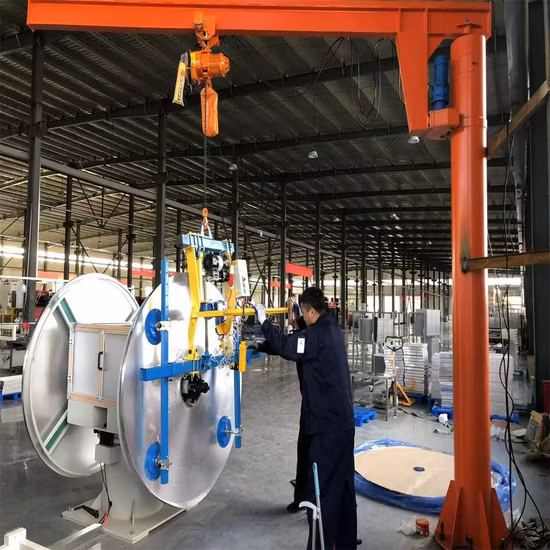

1. The suction crane is a light-weight crane, composed of columns, slewing arm, slewing drive device and electric hoist.
2. The working strength of the cantilever crane is light, the crane is composed of a column, a slewing arm, slewing drive device and an electric hoist, the column is fixed to the concrete foundation by the anchor bolt, and the cycloidal needle wheel deceleration device drives the cantilever slew, and the electric hoist runs in a straight line on the beam, and lifts the heavy object. The column is a hollow steel structure, built-in wire/hose mechanism, using high quality spare parts make it to be a small friction, light walking equipment;
3. Cantilever crane is a new generation of light lifting equipment made to adapt to modern production, with high reliability of the ring chain electric hoist is especially suitable for short distances, frequent use, intensive lifting operations, with high efficiency, energy saving, trouble-saving, small footprint, easy to operate and maintain and other characteristics.

We need your below information if you need making order

1. Working Object Measurement: Length Width Thickness
2. Working Object Material Type:
Carton: tape sealed; nails sealed; unsealed; Straping tape quantity
Bag: PE bags; Woven Bags; Kraft Paper Bags; Filled or not
Barrel: Metal Barrel; Plastic Barrel; Covered or Not; Hook or No
Roll: Plastic; Aluminium; Fabric; Outerside and Inside Diameter, Height
Board: Woodboard; Steel Board;
3. Moving Way: Horizental; 90 degree flip; 360 degree rotate
4. Moving Speed: ---seconds one piece, moving distant:----mm
5. Lifting Height: The installation height base on the construction site
The height of the picking point from the ground
The height of the discharge point from the ground
6. Installation condition: Ground Floor or other floors; base thickness; Ground condition
7. Drawings for the working site or working object or the machine you need, the more information the better.



Our factory locates in Suzhou, Jiangsu Province, we have many years of experience on designing, producing the manipulator machines, and we have served many enterprises engaged in various fields of production, and our products can be personalized according to customer needs. Our aim is to save the customer's labor costs as much as possible, and make production procedures more Mechanized and Automated.

FAQ

1.Are you a factory or trading company?

-We are manufacturer of Intelligent Lifting Machine,Vacuum Lifting Machine,Pneumatic Manipulator

-Our factory is Shenglijia, and our foreign trade title is Escott Trading Company, but actually we are the same one.

2.How can I get the price?

-We usually quote within 24 hours after we get your inquiry.-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

3. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

4.What is your lead time?

-It depends on the order quantity and the season you place the order.-Usually we can ship in 40 to 50 days

5.What is your payment term?

-T/T, 80% advance payment, 20% balance payment before delivery. This is negotiable.

6.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.

Welcome your visit, and if you have any question, please feel free to contact us.
